RAM 1500 Towing Capacity by Year & Engine

Before you hitch anything up, bookmark the towing capacity guide at TowingServiceHub — it covers the full framework for reading specs correctly.

Last updated April 2026.

The RAM 1500 towing capacity ranges from approximately 7,730 to 12,750 pounds depending on model year, engine, and configuration. The 2024-2026 RAM 1500 with the 5.7L HEMI V8 and Max Tow Package achieves the highest rating at 12,750 lbs. The 3.6L Pentastar V6 models are rated between 7,730 and 8,510 lbs depending on axle ratio and cab style. of a RAM 1500?

Achieving Peak Towing Performance: The RAM 1500's maximum towing capacity is 12,750 pounds. That figure applies to the 2024 model year equipped with the 5.7L HEMI V8, 3.92 rear axle ratio, and the Max Tow Package — in crew cab, short bed configuration. Drop to a standard 3.21 axle without the tow package and you're looking at numbers closer to 8,800 lbs.

⚠️ Warning: The gap — nearly 4,000 lbs between the same engine with different configurations — trips up more buyers than almost anything else. The headline number in the ad assumes a specific build that you may or may not have ordered.

Real-World Towing Scenario: Consider towing a loaded horse trailer at 11,500 lbs. If your RAM 1500 has the HEMI but you opted for the 3.55 axle and skipped the Max Tow Package, your actual rating is around 10,680 lbs. In this scenario, you would be over capacity by nearly 1,000 lbs before you even add a bale of hay. This is exactly why checking your door-jamb sticker and RAM's Trailer Towing Supplement — published separately from the owner's manual — matters every single time.

✅ Pro Tip: Tongue weight deserves equal attention. At the standard 10–15% rule, a 10,000-lb trailer puts 1,000–1,500 lbs of tongue weight on your hitch ball. Add two passengers (350 lbs combined), 80 lbs of gear in the cab, and a quarter-tank of fuel, and you're consuming a large portion of your 2,300-lb payload rating fast. Use the payload calculator at TowingServiceHub to run these numbers before you leave the driveway.

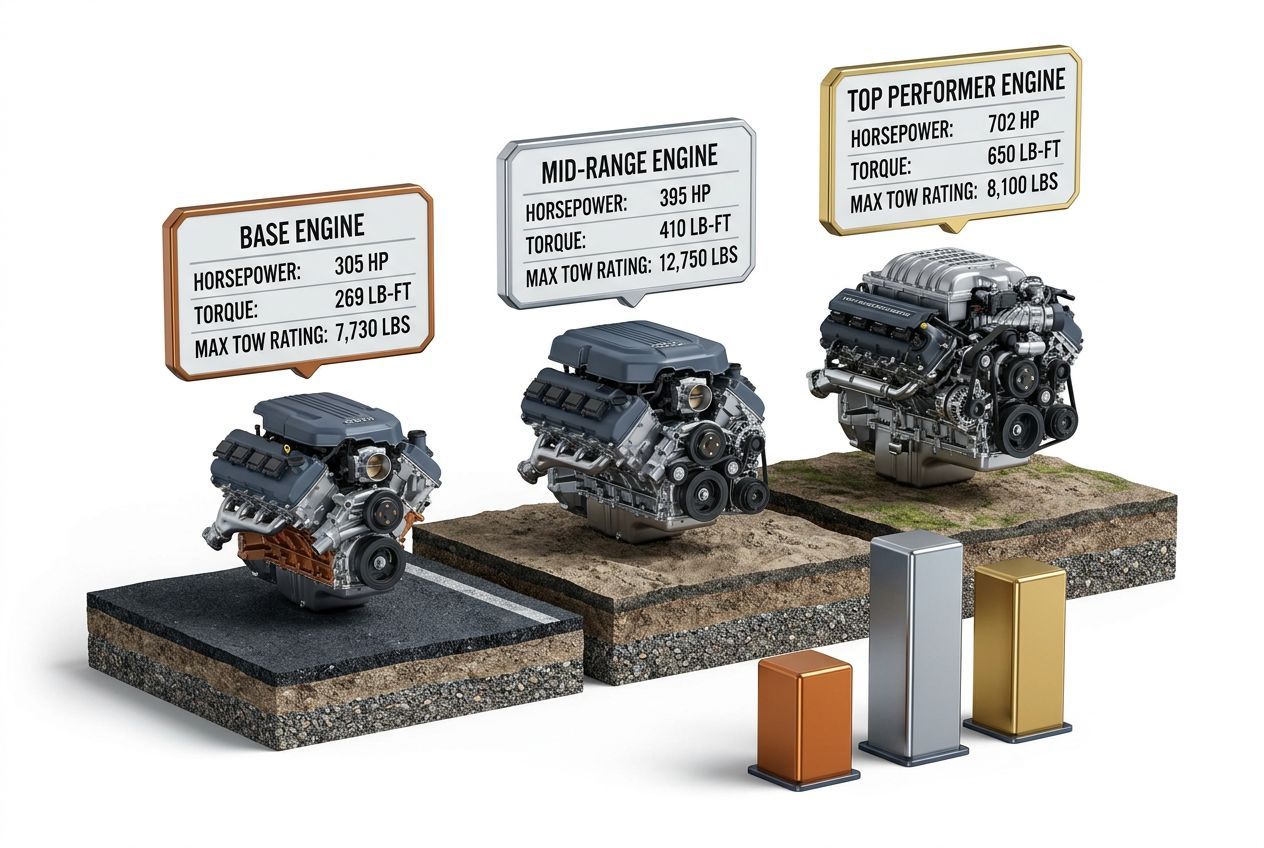

5.7L HEMI Towing Capabilities: The RAM 1500 5.7L HEMI towing capacity falls between 8,160 and 12,750 pounds depending on configuration. Key specifications include:

• Power Output: 395 horsepower and 410 lb-ft of torque
• Transmission: Paired with an 8-speed TorqueFlite automatic in all current applications
• eTorque Option: The mild-hybrid version adds a 48V belt-integrated starter-generator, delivering an extra burst of low-end torque useful on grades and during trailer sway recovery.

💡 Key Takeaway: While the eTorque system doesn't dramatically change the rated tow figures, it significantly improves drivability in real towing conditions. If you've experienced the transmission hunting between gears on a 6% grade with a loaded boat trailer, the eTorque's torque-fill function noticeably smooths out that experience.

For a deeper look at how the HEMI stacks up across recent model years, the 2018 RAM 1500 towing capacity page and 2017 RAM 1500 towing capacity page cover those builds in detail.

⚠️ Warning: The HEMI's 12,750-lb ceiling is firm. If your loaded fifth-wheel camper hits 13,500 lbs, the RAM 1500 isn't the right truck — full stop. You'll need a RAM 2500 with the 6.4L HEMI or 6.7L Cummins. Don't let a salesperson convince you otherwise.

Evolution of Towing Capacity: The RAM 1500 towing capacity by year has climbed steadily from roughly 7,450 lbs in 2009 to 12,750 lbs in 2024. The biggest single jump came with the fifth-generation redesign in 2019, which introduced several key improvements:

• A fully redesigned frame with more high-strength steel
• An available air suspension system (Uconnect-controlled)
• The eTorque mild-hybrid powertrain

📊 Quick Fact: These enhancements collectively contributed to a 900-lb increase over the outgoing generation's maximum towing capacity.

Use the lookup tool below to find the exact spec for your year, cab, bed, and engine combination.

Enter your RAM 1500 year and engine to get your exact tow rating instantly.

RAM 1500 Towing Capacity by Year — Reference Table

Source: RAM Trucks Trailer Towing Guides (ramtrucks.com), compiled by TowingServiceHub. Figures represent maximum-rated configurations; individual builds vary.

💡 Key Takeaway: Fourth-generation trucks (2009–2018, internal code DS) used a traditional coil-link rear suspension. The fifth-generation (2019+, code DT) switched to a fully coil-spring rear setup that dramatically improved trailer sway control and ride comfort under load. According to RAM's published engineering data at ramtrucks.com, the new frame uses 98% high-strength steel — up from 78% in the prior generation.

EcoDiesel vs. HEMI Performance: The RAM 1500 EcoDiesel 3.0L V6 reaches a maximum of 12,560 lbs — just 190 lbs shy of the HEMI's peak. However, the comparison extends beyond the headline number.

• EcoDiesel Output: 260 horsepower and 480 lb-ft of torque. This torque figure, nearly 70 lb-ft more than the HEMI, arrives at much lower RPM, which is where towing stress is most pronounced.
• Towing Experience: On a sustained 7% mountain grade at 60 mph with a 10,000-lb trailer, the EcoDiesel holds gear longer and runs at lower RPM than the HEMI.
• Trade-offs: The EcoDiesel commands a significant premium in initial cost. Additionally, cold-weather startup concerns in northern states can be a factor, as diesel gelling becomes a real issue below -20°F without proper fuel additives.

✅ Pro Tip: The choice between diesel and gas comes down to your specific use case. If you're making regular 300+ mile pulls on the interstate, the EcoDiesel's fuel efficiency advantage (approximately 4–5 MPG better while towing) adds up quickly. For occasional weekend pulls under 8,000 lbs, the Pentastar V6 or a base HEMI configuration handles the job without the diesel premium.

The Critical Role of Axle Ratio: The 3.92 rear axle ratio is required to achieve maximum towing capacity on any RAM 1500 engine. The standard 3.21 axle cuts capacity by 2,000–3,500 lbs depending on the powertrain. A 3.55 axle splits the difference, giving you moderate towing gains with less fuel economy penalty than the 3.92.

✅ Pro Tip: To find your axle ratio without guessing, open the driver's door and look for the build sheet or door-jamb sticker. The rear axle code is listed there. On RAM trucks, the axle ratio is also encoded in your VIN — specifically the character in position 4 of a standard truck VIN decode. Edmunds carries full spec breakdowns by VIN that include axle codes for most model years.

⚠️ Warning: If you're buying used and the seller doesn't know the axle ratio, assume the lower number until you confirm. Towing near your assumed maximum with an unconfirmed 3.21 axle is a real risk.

The axle ratio also interacts with your GCWR (Gross Combined Weight Rating). For a full explanation of how GCWR limits your total rig weight regardless of advertised tow ratings, see the GCWR explainer at TowingServiceHub.

Half-Ton Truck Comparison: The RAM 1500 max towing of 12,750 lbs trails the Ford F-150's 13,500-lb peak and the Chevrolet Silverado 1500's 13,300-lb maximum on paper. According to NHTSA vehicle data at nhtsa.gov, all three trucks are tested under SAE J2807 standards — so the numbers are directly comparable.

RAM's Unique Advantages: That said, the RAM's coil-spring rear suspension and available air suspension system give it a real-world edge in trailer sway stability and driver fatigue on long pulls. The F-150's fully boxed frame and Max Trailer Tow Package are covered in detail on the F-150 towing capacity page, and the Silverado comparison lives on the Silverado towing capacity page.

For a side-by-side view of how all half-ton trucks rank, the half-ton truck towing capacity comparison at TowingServiceHub puts the numbers in one place.

📊 Quick Fact: At altitude (5,000+ feet), all three trucks lose roughly 3% power per 1,000 feet of elevation gain. The RAM 1500's EcoDiesel holds its torque curve better at altitude than naturally aspirated gas engines — a legitimate advantage for buyers in Colorado, Utah, or Wyoming who tow through mountain passes regularly.

Essential Tow Package Components: The RAM 1500 Max Tow Package is the single most important equipment addition for hitting the 12,750-lb ceiling. It includes:

• A Class IV receiver hitch (rated GTW 10,000 lbs — the rating is stamped on the receiver tube near the pin hole)
• An integrated trailer brake controller
• A 7-pin wiring harness
• An auxiliary transmission oil cooler
• The mandatory 3.92 rear axle ratio

⚠️ Warning: Without the Max Tow Package, RAM's published maximum doesn't apply to your truck. The package runs approximately $500–$1,000 as a dealer-installed option, though it's typically bundled into trim packages on higher configurations. If you're buying new, spec it from the factory — the 3.92 axle can't be retrofitted after the fact.

Additional Towing Safety Options: Other options that improve towing safety without changing rated capacity include:

• RAM's Trailer Reverse Guidance system
• Surround-view camera with hitch ball view
• Trailer tow mirrors with power-fold and heating

💡 Key Takeaway: The integrated trailer brake controller deserves special mention — it communicates directly with trailer brakes and adjusts braking sensitivity on the fly, which makes a measurable difference when stopping a 10,000-lb load.

For a detailed walkthrough of how to verify your specific truck's complete tow rating — including tongue weight, payload, and hitch class — use the can-my-truck-tow-this tool and cross-reference with the how to find towing capacity guide.

For buyers shopping specific model years, here is a more detailed breakdown showing how RAM 1500 towing capacity has evolved:

Max towing requires proper equipment including Max Tow Package, Class IV hitch, and appropriate axle ratio.

1. Stay 10–15% below your max tow rating for a safety margin that accounts for passengers, fuel, and cargo.
2. Use the integrated trailer brake controller (standard on Tradesman and above since 2019) for any trailer over 3,000 lbs.
3. Check tongue weight at 10–15% of trailer weight. The RAM 1500's coil-spring rear suspension handles tongue weight well but sags more visibly than leaf springs.
4. Activate Tow/Haul mode. This adjusts shift points and enables engine braking on descents, reducing brake fade risk.
5. Monitor the trailer tire pressure monitoring system (available since 2019) to catch low pressure before it causes a blowout.
6. Use the 360-degree camera system (available since 2019) for hitching and monitoring trailer position in tight spaces.

Source: RAM Truck Owner's Manual, Scheduled Maintenance Guide.
