2009 Ford F-150 Towing Capacity by Trim & Engine

Last updated April 2026.

The 2009 Ford F-150 towing capacity ranges from 5,500 to 11,300 pounds. The 5.4L Triton V8 with a 3.73 rear axle and max tow package achieves the highest rating at 11,300 lbs. The new-for-2009 4.6L 3-valve V8 handles up to 8,100 lbs, making it a solid mid-range option for moderate towing needs. of a 2009 Ford F-150?

Achieving the Max Rating: The 2009 Ford F-150 has a maximum towing capacity of 11,300 pounds. That figure requires the 5.4L Triton V8, a Class IV trailer hitch, the Max Trailer Tow Package, a 3.73 rear axle ratio, and a Regular Cab short-bed 4×2 drivetrain. Move to a SuperCrew or add 4×4, and the 2009 F-150 towing capacity drops — sometimes by 3,000 lbs.

A Redesigned Platform: The 2009 model year marked the launch of a completely redesigned F-150. Ford used higher-strength steel throughout the frame, shedding weight while increasing torsional rigidity compared to the outgoing 11th-gen platform. That structural overhaul is one reason tow ratings climbed over earlier years — check our 2008 Ford F-150 towing capacity breakdown if you're comparing consecutive model years.

Use the interactive tool below to look up specs by your exact configuration. Enter your cab style, engine, axle, and drivetrain to see the number that applies to your truck — not the best-case figure on the window sticker.

Enter your engine, cab style, and axle below for your specific 09 F-150 tow rating.

Engine Over Trim: Every trim from XL to Platinum draws from the same engine and axle menu. That means a base-trim XL with the right options can legally outpull a fully loaded Lariat that skipped the tow package. Focus on powertrain spec — not the badge on the tailgate.

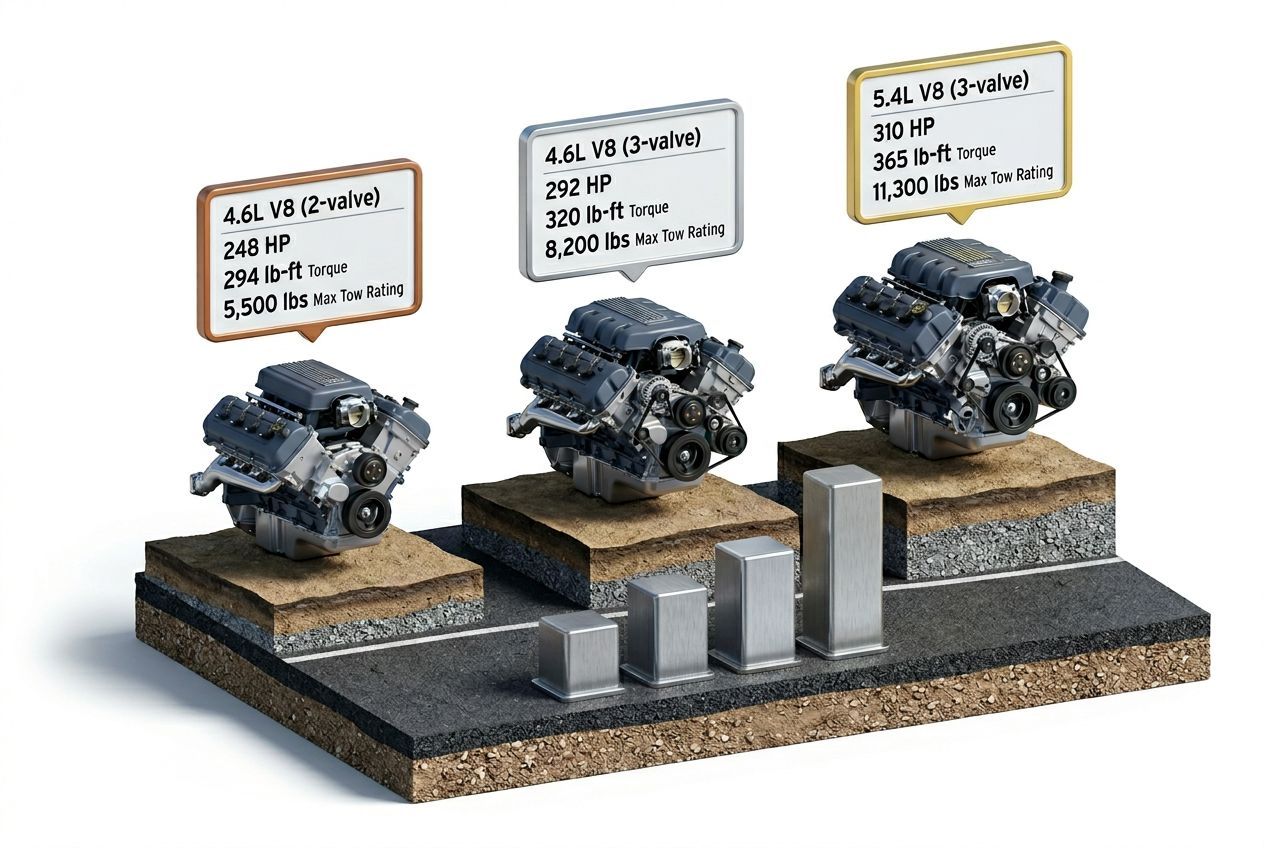

The Powerhouse 5.4L Triton V8: The 5.4L 3-valve Triton V8 enables a towing range of 7,700–11,300 pounds depending on cab style, bed length, drivetrain, and axle ratio. This engine is the only path to the 2009 F-150's headline tow number.

• Horsepower: 310 hp
• Torque: 365 lb-ft
• Transmission: 6-speed SelectShift automatic
• Key Enabler: The 3.73 electronic limited-slip axle, added by the Max Trailer Tow Package, is what unlocks the top of that range.

Axle Ratio Impact: With the standard 3.55 axle, expect a ceiling closer to 9,500 lbs on comparable cab and drivetrain configurations. Bump to a SuperCrew 4×4 with a 5.5-ft bed and the 3.55 axle, and you're looking at roughly 8,100 lbs — same engine, very different result.

✅ Pro Tip: Understanding Your Payload Limits You're towing a loaded car trailer with an 8,200-lb combined weight. Tongue weight at 12% is 984 lbs. Add yourself (185 lbs), a co-pilot (165 lbs), and 60 lbs of gear in the cab. That's 1,394 lbs of effective payload demand. If your truck's door sticker lists 2,500 lbs of payload, you have 230 lbs of headroom. Full fuel tank? That's another 120–140 lbs. You're now in the red.

Verifying Ford's Specs: According to Ford's published towing guide, configuration-specific capacities are laid out in the Trailer Towing Supplement — a separate document from the owner's manual.

⚠️ Warning: If you bought this truck used, search the VIN on the NHTSA database at nhtsa.gov to confirm no open recalls before towing.

Two 4.6L V8 Options: The 4.6L V8 comes in two versions, and the difference matters significantly for towing capacity.

Shared Transmission: Both 4.6L variants pair with the same 6-speed automatic as the 5.4L, which helps manage loads. However, peak torque arrives higher in the RPM band compared to the bigger engine, and you'll feel that difference on grades or at altitude.

📊 Quick Fact: Altitude's Impact on Power At 5,000 feet of elevation, naturally aspirated engines lose roughly 3% of power per 1,000 feet. The 3-valve 4.6L at 7,000 feet in Colorado is effectively operating with about 15% less power than its sea-level rating. A 7,000-lb trailer that felt manageable in Kansas can turn into a white-knuckle climb through the Rockies in the same truck.

Ideal Uses for the 4.6L: The 4.6L is genuinely well-suited for lighter towing tasks:

• Single-axle utility trailers
• Small ski boats under 5,500 lbs
• Pop-up campers

If your typical load runs under 6,000 lbs, either 4.6L version handles it without straining — and you'll spend less on fuel than you would with the 5.4L. For broader context on how this generation's engines stack up over multiple years, the F-150 towing capacity hub covers the full history.

Tow Package is Mandatory: Yes — the factory tow package is mandatory for the published max ratings, not optional. Without it, Ford rates the 2009 F-150 at lower conventional towing limits across the board.

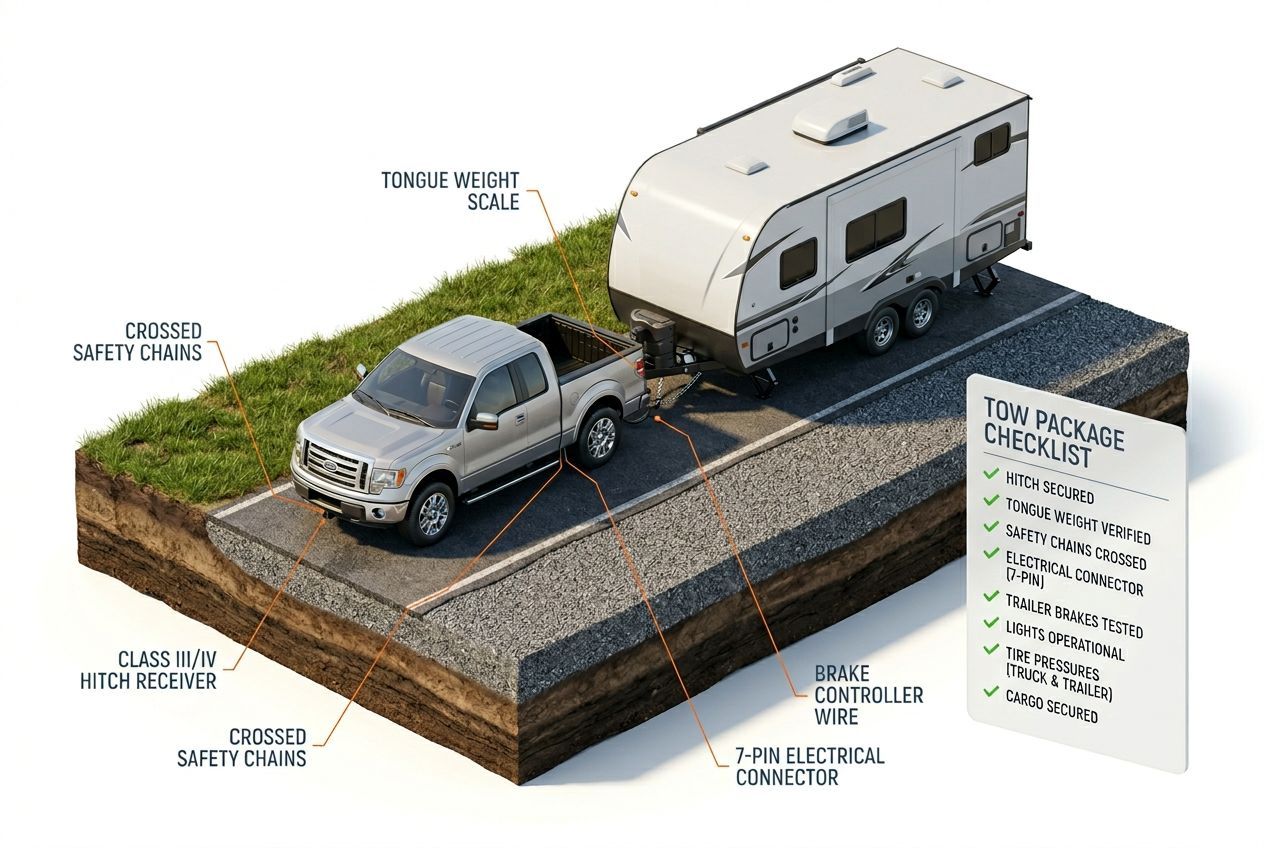

Understanding Tow Package Contents: There were two primary tow package options:

• Standard Class III Trailer Tow Package:
  • Class IV receiver hitch
  • 7-pin/4-pin wiring harness
  • Heavy-duty flasher relay
  • Upgraded cooling (usually including a larger radiator)
• Max Trailer Tow Package (Required for Max Rating):
  • Includes all items from the Standard Class III package, plus:
  • Transmission oil cooler
  • Engine oil cooler
  • 3.73 electronic limited-slip rear axle
  • Integrated trailer brake controller (required by most states when towing over 10,000 lbs, per FMCSA regulations)

⚠️ Warning: Transmission Health is Key Without the transmission oil cooler, towing at or near max capacity with stock cooling and degraded ATF is the leading cause of transmission failure in half-ton trucks. The 2009 F-150 uses a 6R80 6-speed automatic — Ford specifies Mercon LV fluid for this transmission. If you bought this truck used and don't have service records, change the fluid before your first tow.

✅ Pro Tip: Verify Your Truck's Specs Check the driver's-side door jamb sticker for GVWR and payload. Then cross-reference the glove box or online for the Trailer Towing Supplement — that document specifies which packages were required for each rated configuration, something the main owner's manual doesn't fully detail.

Payload Limits: The 2009 Ford F-150 payload capacity ranges from 1,440 to 3,030 pounds. Payload and towing capacity are separate but linked — tongue weight counts against your payload budget, and exceeding either figure is both unsafe and potentially illegal.

💡 Key Takeaway: Payload Math in Action You're towing a 9,000-lb fifth-wheel (unusual for an F-150, but within spec on a 5.4L Regular Cab). Fifth-wheel pin weight typically runs 18–22% of trailer weight, so call it 1,800 lbs. Add two adults (370 lbs combined) and weekend gear in the cab (100 lbs). That's 2,270 lbs of effective payload demand. If your truck's door sticker lists 2,500 lbs of payload, you have 230 lbs of headroom. Full fuel tank? That's another 120–140 lbs. You're now in the red.

Used Truck Buyer Pitfall: This is the scenario where used truck buyers get tripped up. The window sticker max towing number looks fine — but payload is what actually limits real-world use. For a deeper look at how these two ratings interact, see our towing capacity vs. payload explainer.

⚠️ Warning: Your Truck is Unique The payload figure stamped on your door jamb is truck-specific. Two identically-specced 2009 F-150s can have different payload ratings based on factory options. Always read your sticker.

Detailed Towing Capacities: The table below reflects Ford's published ratings from the 2009 F-150 Trailer Towing Supplement. Ratings assume the factory tow package is installed unless noted. Sources: Ford, Edmunds.

Ratings are conventional tow ratings with tow package installed. Fifth-wheel ratings differ. Verify against your truck's specific door jamb sticker and Trailer Towing Supplement.

Class-Leading Performance: The 2009 F-150 leads its class at 11,300 lbs max, ahead of its direct competitors.

Real-World vs. Paper Specs: That said, the F-150's max figure is a best-case number that requires a specific, narrow configuration. In real-world half-ton comparisons, the difference between these three trucks often comes down to payload, ride quality while towing, and available dealer inventory — not which one wins on paper by 600 lbs.

⚠️ Warning: Know Your Limits The honest limitation: all three of these half-tons hit a firm ceiling. If your fully loaded travel trailer tips 12,000 lbs or you're regularly pulling a loaded gooseneck above 10,000 lbs, none of these trucks is the right tool. You need a 3/4-ton — an F-250, Silverado 2500HD, or RAM 2500 — for that duty cycle. For a broader half-ton ranking, our half-ton truck towing capacity comparison covers the full competitive field.

Key Variables for Real-World Towing: Real-world 2009 F-150 towing capacity depends on six critical variables:

• Axle ratio: The most significant factor.
• Cab and bed configuration: Impacts curb weight and chassis rigidity.
• 4×2 vs. 4×4 drivetrain: 4×4 adds weight and complexity, often reducing max tow.
• Tow package presence: Essential for optimal cooling and mechanical components.
• Altitude: Naturally aspirated engines lose power at higher elevations.
• Ambient temperature: Higher temps stress cooling systems more.

Axle Ratio is Paramount: The biggest single variable is axle ratio. The 3.73 rear axle — only available through the Max Trailer Tow Package — can add 1,500–2,000 lbs of capacity versus the standard 3.55 axle on the same engine and cab combo. Verify the axle code on the door jamb sticker or in the glove box options sheet before assuming your used truck has the right gear.

💡 Key Takeaway: Don't Overlook Tongue Weight and Hitch Rating Tongue weight is capped at 10–15% of trailer weight and cannot exceed your remaining payload budget. Crucially, verify your hitch receiver is rated Class IV — the rating is stamped on the receiver tube near the pin hole. "Class IV" or "GTW 10,000" should appear on the metal. A Class III receiver (rated 5,000-lb GTW) will fail under a 9,000-lb trailer regardless of what the engine can pull.

Gross Combined Weight Rating (GCWR): The 09 F-150 tow rating also changes based on Gross Combined Weight Rating (GCWR). According to Ford's published specs, GCWR on the highest-rated configuration is 17,000 lbs. Subtract curb weight (roughly 5,400–6,000 lbs depending on config) and you get trailer + payload headroom. That ceiling is fixed — adding a heavier cab, full fuel tank, and passengers all eat into it. For a full walkthrough of how GCWR factors into your towing math, see our GCWR explainer. And if you're not sure whether your specific setup can handle a target trailer, run the numbers through our can my truck tow this tool.

Starting a New Generation: The 2009 model year is the start of the 12th-generation F-150, so you're buying into a freshly redesigned platform when you purchase one of these. The 2010 Ford F-150 towing capacity carried over nearly identical ratings as Ford refined the generation rather than overhauling it.

Looking Backward: The 2008 Ford F-150 towing capacity used the outgoing 11th-gen platform with lower overall tow ratings. If you're deciding between an early-generation used truck and this one, the 2009's structural improvements give it a meaningful advantage. The 2007 F-150 towing capacity and 2006 F-150 towing capacity are even further behind on the platform curve.

Looking Ahead: Ford continued evolving the 12th gen through the 2014 model year before the aluminum-body 13th gen arrived for 2015. Our 2015 Ford F-150 towing capacity article covers that transition if you're deciding between generations.

The 2009 F-150 launched the 12th generation with significant towing upgrades, but these fundamentals still apply:

1. Stay 10–15% below your max tow rating. The 2009's 11,300 lb max means a practical limit of ~9,600–10,200 lbs for highway safety.
2. Use the factory integrated trailer brake controller. The 2009 is the first F-150 with a factory brake controller option — use it for any trailer over 3,000 lbs.
3. Verify tongue weight at 10–15% of trailer weight. The 2009's improved rear suspension handles tongue weight better than prior generations but limits still apply.
4. Downshift on long descents. The new 6-speed automatic manages better than the old 4-speed but engine braking is still essential on mountain grades.
5. Monitor transmission temperature. The 2009 added an available transmission temp display in the message center — keep below 250°F.
6. Increase following distance to 6–8 seconds when loaded. Even with the 2009's improved brakes, stopping distance increases 40% with a heavy trailer.

Source: Ford Motor Company 2009 F-150 Owner's Manual.
