2021 Ford F-150 Towing Capacity by Trim & Engine

Unlocking the maximum capacity: The 2021 Ford F-150 achieves its highest conventional towing capacity at 14,000 lbs. This impressive rating requires a very specific combination:

• The 3.5L EcoBoost V6 engine
• The Max Trailer Tow Package
• A 4×2 drivetrain
• A SuperCrew cab
• A 6.5-ft bed

This configuration proudly topped the light-duty full-size segment in 2021. Any deviation from these variables — opting for a 4×4, choosing a different bed length, or omitting the Max Tow Package — will result in a lower tow rating.

📊 Quick Fact: According to Ford's 2021 F-150 Trailer Towing Guide, rated capacity is calculated per SAE J2807 standards, which account for a driver, a passenger, and full fuel. This is an important distinction, as some older industry ratings did not include occupants.

Find your exact rating: Use the tool below to look up your specific 2021 F-150 build. Capacity varies significantly by cab style, bed length, engine, axle ratio, and package, so a few clicks can prevent a serious miscalculation.

For a broader look at how the F-150 compares across all years, see our full F-150 towing capacity guide.

How Much Can a 2021 F-150 With the 3.5 EcoBoost Tow?

The 3.5L EcoBoost V6 is the strongest engine in the 2021 F-150 lineup for towing, offering a range of 10,100–14,000 lbs depending on configuration. This engine generates a robust 400 hp and 500 lb-ft of torque, with peak torque arriving early at just 2,500 rpm—precisely when you need it most for trailer starts and climbing grades. To reach the top of the half-ton segment, this engine must be paired with the 3.55 electronic-locking rear axle and the Max Trailer Tow Package (Ford option code 53C).

Understanding the Max Trailer Tow Package

What exactly does that crucial Max Trailer Tow Package include? It's a suite of upgrades designed for heavy-duty hauling:

• An upgraded radiator
• An integrated trailer brake controller
• A larger 36-gallon fuel tank
• The essential 3.55 electronic-locking rear axle

Without this package, you're working with the base Trailer Tow Package, and your towing ceiling drops considerably—as low as 10,100 lbs in some 4×4 SuperCrew long-bed builds.

✅ Pro Tip: The 3.5L EcoBoost's 10-speed SelectShift automatic transmission (10R80) is specifically designed to help manage heat during extended towing. If you regularly haul large travel trailers or car haulers, this engine is your ideal choice.

For a direct comparison of how this powertrain stacks up in nearby model years, check out our 2018 Ford F-150 towing capacity and 2022 comparison breakdowns.

What Is the Towing Capacity of the 2021 F-150 PowerBoost Hybrid?

The 2021 F-150 PowerBoost hybrid offers a maximum towing capacity of 12,700 lbs, making it the most unique engine option in the lineup. This innovative powertrain combines the 3.5L EcoBoost with a 35-kW electric motor integrated into the 10-speed automatic transmission. The result is a combined output of 430 hp and an impressive 570 lb-ft of torque—more torque than any other F-150 engine option.

Hybrid Advantages: Torque and Pro Power Onboard

The electric motor delivers instant low-end torque, which provides a real-world advantage on boat ramps and steep grades where a conventional engine might otherwise struggle. Additionally, Ford's Pro Power Onboard feature is available with either 2.4 kW or an robust 7.2 kW of generator output. This capability is sufficient to run power tools, lighting, or campsite equipment without needing a separate generator.

⚠️ Warning: One honest limitation of the PowerBoost is its 12,700-lb towing ceiling, which is lower than the non-hybrid 3.5L EcoBoost's 14,000-lb maximum. The added mass of the hybrid battery and electric motor reduces payload capacity and, consequently, the rated tow limit. If your trailer consistently weighs 13,000+ lbs, the non-hybrid 3.5L EcoBoost remains the superior engine choice.

For a broader look at how hybrid pickups perform under load, see our electric truck towing capacity overview.

Does the 2021 F-150 5.0 V8 Tow More Than the 2.7 EcoBoost?

Yes, the 2021 F-150 5.0L V8 significantly out-tows the 2.7L EcoBoost V6. The 5.0L V8 can tow up to 13,000 lbs in its best configuration, whereas the 2.7L EcoBoost V6 tops out at 10,100 lbs. This represents a substantial 2,900-lb difference, which is crucial when matching a truck to a specific trailer weight.

Engine Performance Comparison

• 5.0L Ti-VCT V8: Produces 400 hp and 410 lb-ft of torque. It also benefits from being compatible with the Max Trailer Tow Package across a broader range of cab and bed configurations compared to the 2.7L EcoBoost.
• 2.7L EcoBoost V6: Delivers 325 hp and 400 lb-ft of torque. While capable, this engine is tuned more for fuel efficiency than raw pulling power. It generally offers better MPG when towing loads under 8,000 lbs.

💡 Key Takeaway: As a useful rule of thumb, if your loaded trailer will consistently stay below 8,000 lbs, the 2.7L EcoBoost offers better fuel efficiency without meaningful compromise. However, if you anticipate regularly towing above 10,000 lbs, the 5.0L V8 or 3.5L EcoBoost are your only realistic and safe options.

For context on how the competition stacks up in this range, see our RAM 1500 towing capacity and Silverado towing capacity pages.

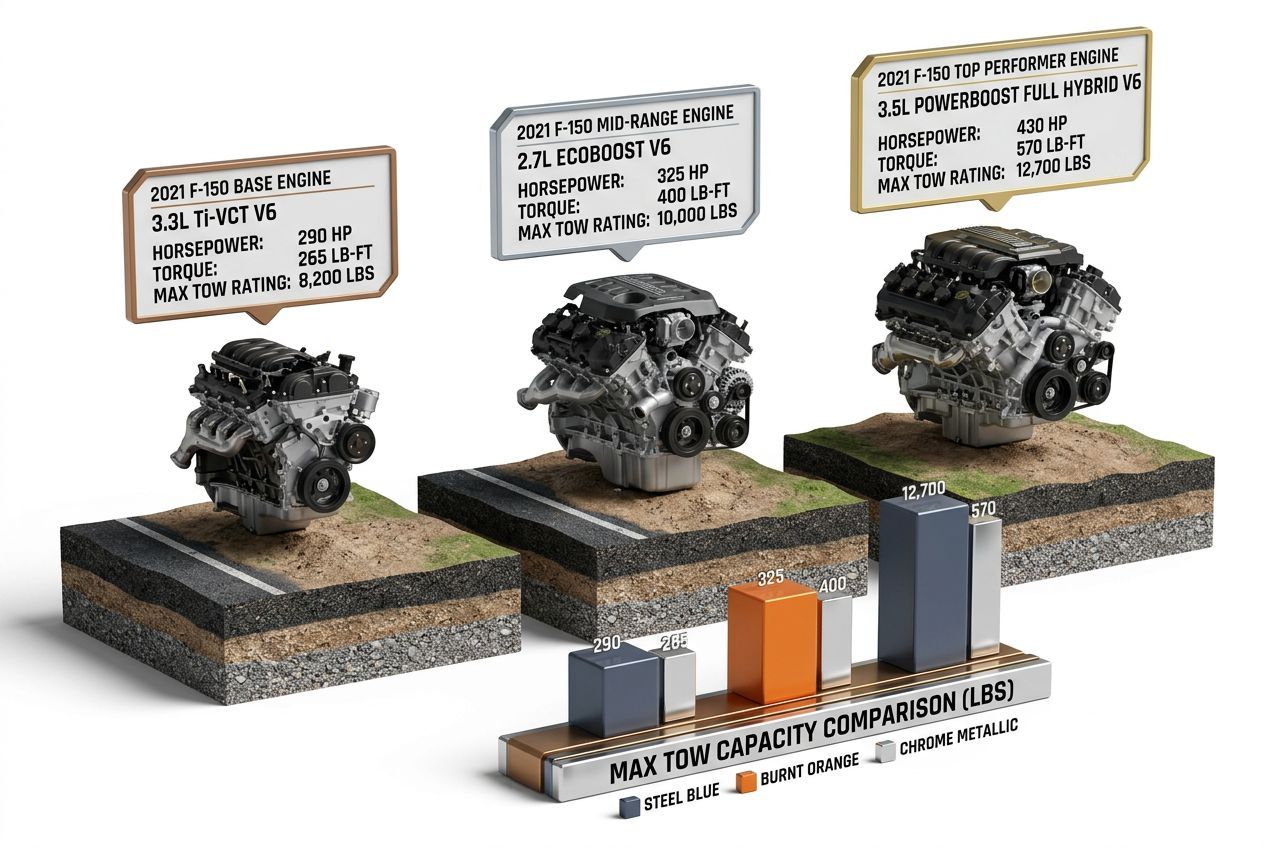

2021 F-150 Towing Capacity by Engine — Full Data Table

Understanding maximum ratings: The numbers below reflect the highest possible ratings according to Ford's 2021 F-150 Trailer Towing Guide. It's vital to remember that these are ceiling figures that demand specific package, axle, cab, and drivetrain combinations to achieve.

Source: Ford 2021 F-150 Trailer Towing Supplement, ford.com. All ratings per SAE J2807.

What Tow Packages Are Available on the 2021 F-150?

Choosing the correct tow package is critical and one of the most common—and potentially costly—configuration mistakes buyers make. The 2021 F-150 offers three distinct tiers of tow packages:

• Trailer Tow Package: This is the baseline package. It adds a Class IV trailer hitch receiver, a 7-pin wiring harness, a heavy-duty flasher relay, and an auxiliary transmission oil cooler. If your truck didn't come with this package, the published maximum tow ratings generally do not apply.

• Max Trailer Tow Package (Required for Max Capacity): This comprehensive package includes everything from the Trailer Tow Package, plus:

  • An upgraded engine oil cooler
  • An upgraded radiator
  • A large 36-gallon extended fuel tank
  • An integrated trailer brake controller
  • The crucial 3.55 electronic-locking rear axle

  This package is absolutely required to achieve the 14,000-lb rating on the 3.5L EcoBoost and the 13,000-lb rating on the 5.0L V8.

• Pro Trailer Backup Assist: This is a technology add-on, not a structural upgrade for towing capacity. It features a dashboard knob that allows you to control the trailer's steering direction while backing up, making it extremely useful for owners who frequently maneuver trailers in tight spaces.

💡 Key Takeaway: The integrated trailer brake controller, specifically, is a significant safety feature. Ford's unit supports proportional braking, which intelligently modulates brake force based on actual vehicle deceleration—a meaningful upgrade over simpler, time-delayed controllers. Always verify your truck's build includes it, either via the door-jamb sticker on the driver's side B-pillar (which lists GVWR, GAWR, and payload) or by cross-referencing the Trailer Towing Supplement available on ford.com.

How Does Axle Ratio Affect 2021 F-150 Towing Capacity?

Axle ratio is arguably one of the biggest variables in the 2021 F-150 towing equation, yet it's frequently overlooked by buyers. The standard 3.15 axle ratio will limit your tow rating in virtually every engine and cab configuration. Upgrading to a 3.55 electronic-locking rear axle, which is included in the Max Trailer Tow Package, is what unlocks the highest ratings across the board.

Real-World Axle Ratio Impact

Consider this practical example:

• A 2021 F-150 with the 3.5L EcoBoost, 4×2, SuperCrew, and 5.5-ft bed equipped with a 3.31 axle is typically rated at approximately 11,600 lbs.
• The exact same truck, but with a 3.55 axle under the Max Tow Package, sees its rating climb to 13,000–14,000 lbs, depending on the precise configuration.

This represents a real-world difference of well over a ton, highlighting the profound impact of axle ratio.

The trade-off for higher capacity: While beneficial for towing, a 3.55 axle will typically cost you roughly 1–2 MPG on the highway when the truck is unloaded compared to a 3.15 ratio. If you only tow a 10,000-lb fifth-wheel twice a year and otherwise commute 25,000 miles annually, this efficiency hit matters. However, if you're regularly pulling a horse trailer every weekend, the enhanced towing capacity and safety margin provided by the higher axle ratio are well worth it.

✅ Pro Tip: For a deeper look at how GCWR (Gross Combined Weight Rating) ties into these numbers, see our what is GCWR guide. And if you're trying to match a specific trailer to your truck's specifications, our can my truck tow this tool walks you through the calculation step by step.

What Is the Payload Capacity of the 2021 F-150?

The 2021 Ford F-150 can achieve a maximum payload of 3,325 lbs. This impressive figure is reached with the 5.0L V8, Regular Cab, 8-ft bed, Heavy-Duty Payload Package, and a 4×2 drivetrain. While exceptional for a half-ton truck, this is rarely the number most buyers actually get.

Your truck's actual payload: A typical 2021 F-150 SuperCrew with the 3.5L EcoBoost and 4×4 will likely have a payload capacity closer to 1,500–1,800 lbs. This crucial number is displayed on the yellow sticker inside your driver's door jamb. Always check this sticker before loading any trailer, as it represents the actual limit for your specific truck, not the segment maximum.

💡 Key Takeaway: Here's why payload matters so much for towing: tongue weight—typically 10–15% of your gross trailer weight—directly counts against your truck's payload capacity.

Payload vs. Tongue Weight: Imagine you're towing a 10,000-lb fifth-wheel with a 15% pin weight. That's 1,500 lbs resting on your truck's frame. Now, add the weight of the driver (e.g., 200 lbs), a passenger (e.g., 170 lbs), a full tank of fuel (around 200 lbs for a 26-gallon tank), and any gear in the cab or bed. This quickly adds up to 2,070 lbs. If your truck has an 1,800-lb payload rating, you're already overloaded—even if your trailer's weight is well within the F-150's tow limit.

⚠️ Warning: This scenario is where most half-ton owners encounter problems. Both the towing capacity and the payload capacity are firm limits. Exceeding either one first poses a significant safety risk.

For a detailed breakdown of how these two specifications interact, our towing capacity vs payload guide covers exactly this scenario.

What Can the 2021 F-150 NOT Tow?

Understanding the F-150's limits: While the 2021 F-150's maximum towing capacity of 14,000 lbs is highly impressive for a half-ton truck, this ceiling is firm. If your loaded fifth-wheel trailer weighs 16,000 lbs, for example, the F-150 is simply not the right truck for the job. For such heavy loads, you would need a minimum of a 3/4-ton truck, such as an F-250 with the 7.3L Godzilla V8 or 6.7L Power Stroke diesel, a Silverado 2500HD, or a RAM 2500 with the 6.7L Cummins.

Altitude and Long-Term Wear

Altitude impact: At higher altitudes, that towing ceiling shrinks further. According to NHTSA guidance, both naturally aspirated and turbocharged engines lose efficiency at elevation—approximately 3% power loss per 1,000 feet for naturally aspirated engines. The 5.0L V8's 13,000-lb rating, for instance, was tested at sea level. At 7,000 feet in Colorado, you are effectively towing with 15–18% less power. While the 3.5L EcoBoost holds its power better than the V8 due to turbocharger compensation, it is still not entirely unaffected.

⚠️ Warning: Consistent use near the F-150's maximum towing limit, especially with very heavy trailers (e.g., over 13,000 lbs) for long durations, can accelerate wear on key components. The transmission, brakes, and frame are engineered around a specific duty cycle.

✅ Pro Tip: Before any extended towing season, it's wise to change the Mercon SP transmission fluid (used in the 10R80) and thoroughly check brake pad thickness, especially before high-mileage hauls.
