Toyota Tacoma Towing Capacity by Year & Configuration

Achieving Max Capacity: The maximum towing capacity of a Toyota Tacoma is 6,500 pounds. To reach this figure, your Tacoma needs the V6 engine (or the 2024+ 2.4L turbo four-cylinder), a 6-speed automatic transmission, and the factory tow package installed. This 6,500 lbs maximum applies to both third-generation (2016–2023) and fourth-generation (2024–2025) models, although the specific configuration requirements differ slightly by generation.

Historical Context: Second-gen Tacomas (2005–2015) also reached 6,500 lbs with the 4.0L V6 and tow package. First-gen models (1995–2004) topped out around 5,000 lbs with the 3.4L V6. This means the Tacoma's towing ceiling has remained remarkably consistent for nearly 20 years, without the dramatic leaps seen in full-size trucks like the Ford F-150.

💡 Key Takeaway: The 6,500 lbs maximum is a firm limit for the Toyota Tacoma. If your loaded trailer or boat exceeds this weight, you'll need to consider a larger vehicle like a full-size half-ton truck or the Toyota Tundra, which can tow up to 12,000 lbs. For general towing principles, consult our towing capacity guide.

V6 Capacity Range: The Tacoma V6 towing capacity typically ranges from 6,400 to 6,500 pounds, depending on specific factors such as model year, cab style, and drivetrain. Third-generation 3.5L V6 models with 2WD and the 6-speed automatic transmission are rated highest at 6,500 lbs.

Drivetrain Impact: Opting for 4WD generally trims the rating slightly to 6,400 lbs on certain configurations. This small reduction is primarily due to the added weight of the 4WD components, which consume a portion of the truck's overall weight budget.

📊 Quick Fact: The 3.5L V6 (2GR-FKS engine), introduced in 2016, features Atkinson cycle capability for improved fuel economy and produces 265 lb-ft of torque. While this is slightly less peak torque than the 4.0L 1GR-FE it replaced (278 lb-ft), its D-4ST system (direct and port injection) ensures comparable real-world towing performance. According to Toyota's official guides, the factory tow package is essential to achieve the maximum rating.

⚠️ Warning: Choosing a manual transmission with the third-gen V6 significantly reduces your maximum rating by approximately 400 lbs. While the 6-speed manual is mechanically robust, Toyota engineers rate it lower, likely due to concerns about clutch heat management under sustained towing loads.

Consistent Performance: Tacoma towing capacity by year has remained remarkably consistent across generations, with the maximum rating holding steady at 6,500 lbs since the mid-2000s. The key variations lie in the specific configurations required to achieve this ceiling.

Lookup Tool: Use the interactive tool below to find the exact towing capacity for your specific Tacoma configuration. Simply enter your year, engine, and drivetrain to access the detailed spec sheet.

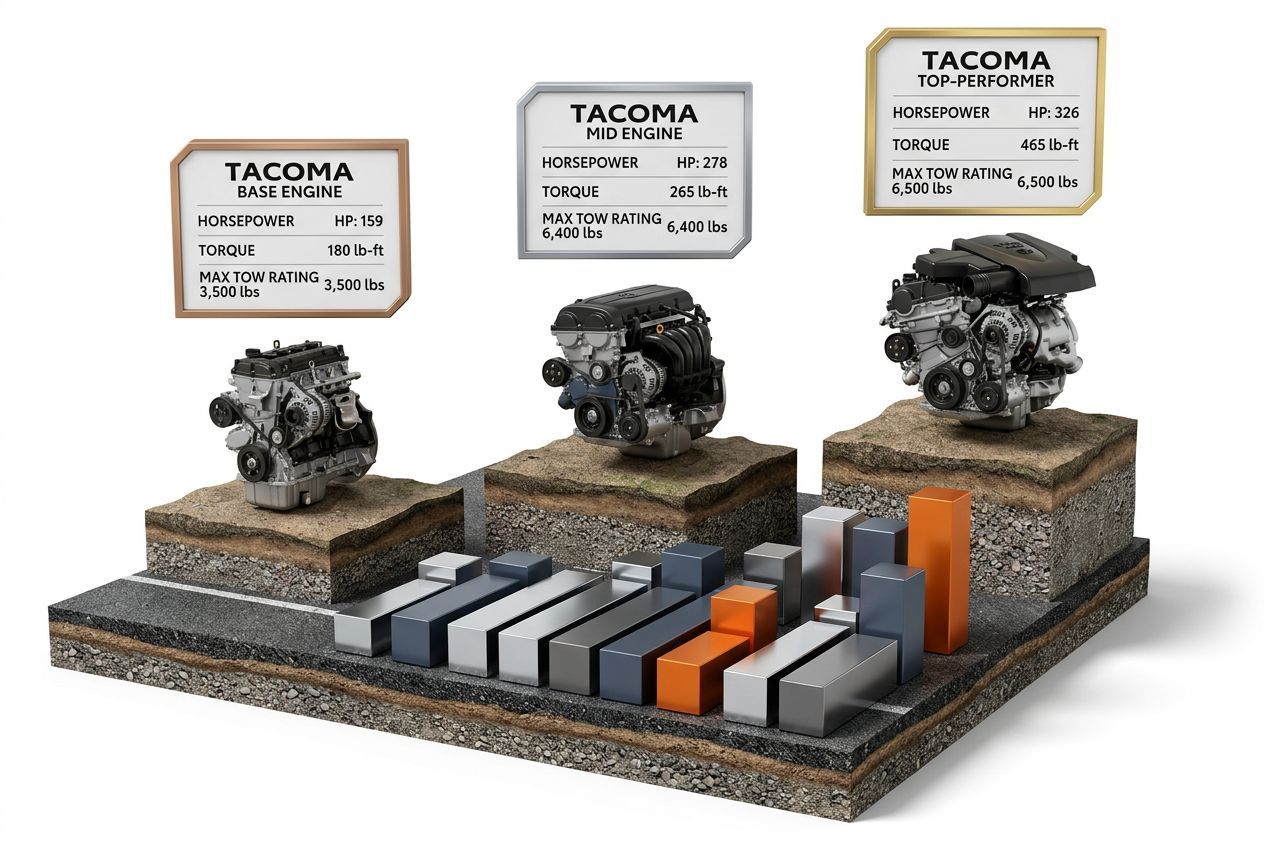

Tacoma Towing Capacity by Generation and Engine

Here's a comprehensive breakdown of the Tacoma's towing and payload capacities by generation and engine:

Source: Toyota Motor Corporation towing guides; Edmunds vehicle specs database (edmunds.com)

For year-specific deep dives into the third generation, see the 2016 Toyota Tacoma towing capacity and 2017 Toyota Tacoma towing capacity pages.

Towing Capabilities: A Toyota Tacoma is capable of towing most small-to-midsize travel trailers and pop-up campers. However, it's crucial that the loaded trailer weight remains below 5,500 lbs, and that your truck is equipped with the V6 engine and the factory tow package.

✅ Pro Tip: The 500-lb buffer below the 6,500-lb maximum capacity is not just cautious; it's a practical allowance for the real-world weight increases that come from water tanks, gear, food, and other necessities that add up quickly.

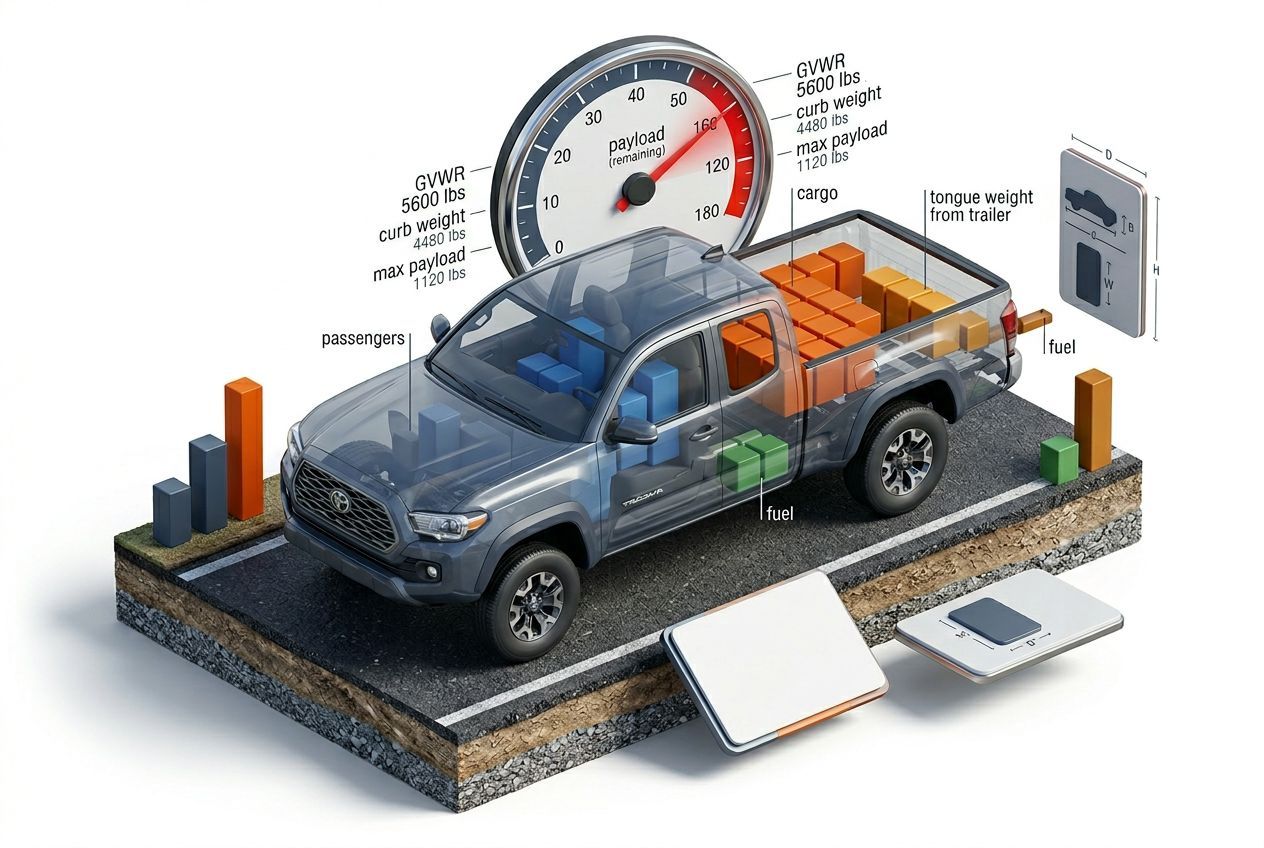

Real-World Example: Consider towing a Forest River R-Pod 190 with a dry weight of 4,015 lbs.

• Adding 300 lbs of gear and a full fresh-water tank (40 gallons = 334 lbs) brings your loaded trailer weight to approximately 4,650 lbs.
• Tongue weight at 12% would be roughly 558 lbs.
• Factoring in yourself (185 lbs), a passenger (160 lbs), and 60 lbs of cab gear adds 963 lbs to your payload.
• Against the Tacoma's 1,685-lb payload rating, you're using about 57% of your payload capacity with ample room to spare.
• Your trailer weight is comfortably within the 6,500-lb limit. This represents a realistic and manageable towing setup for a third-gen V6 Tacoma.

When the Tacoma Falls Short: Stepping up to a 26-foot travel trailer that weighs 7,000–8,000 lbs when loaded is beyond the Tacoma's capabilities. The Gross Combined Weight Rating (GCWR) for a third-gen V6 Tacoma is 11,430 lbs. With a 6,500-lb trailer, plus a 4,600-lb curb weight, and occupants, you'd quickly exceed this limit. Understanding the difference between towing capacity vs. payload is vital before purchasing a trailer.

Essential for Maximum Towing: Yes, the factory Toyota Tacoma tow package is absolutely critical for unlocking the truck's maximum rated towing capacity. Without this package, most V6 Tacoma configurations are rated at approximately 3,500 lbs, which is the same as the base four-cylinder models. Essentially, the tow package roughly doubles your usable trailer capacity.

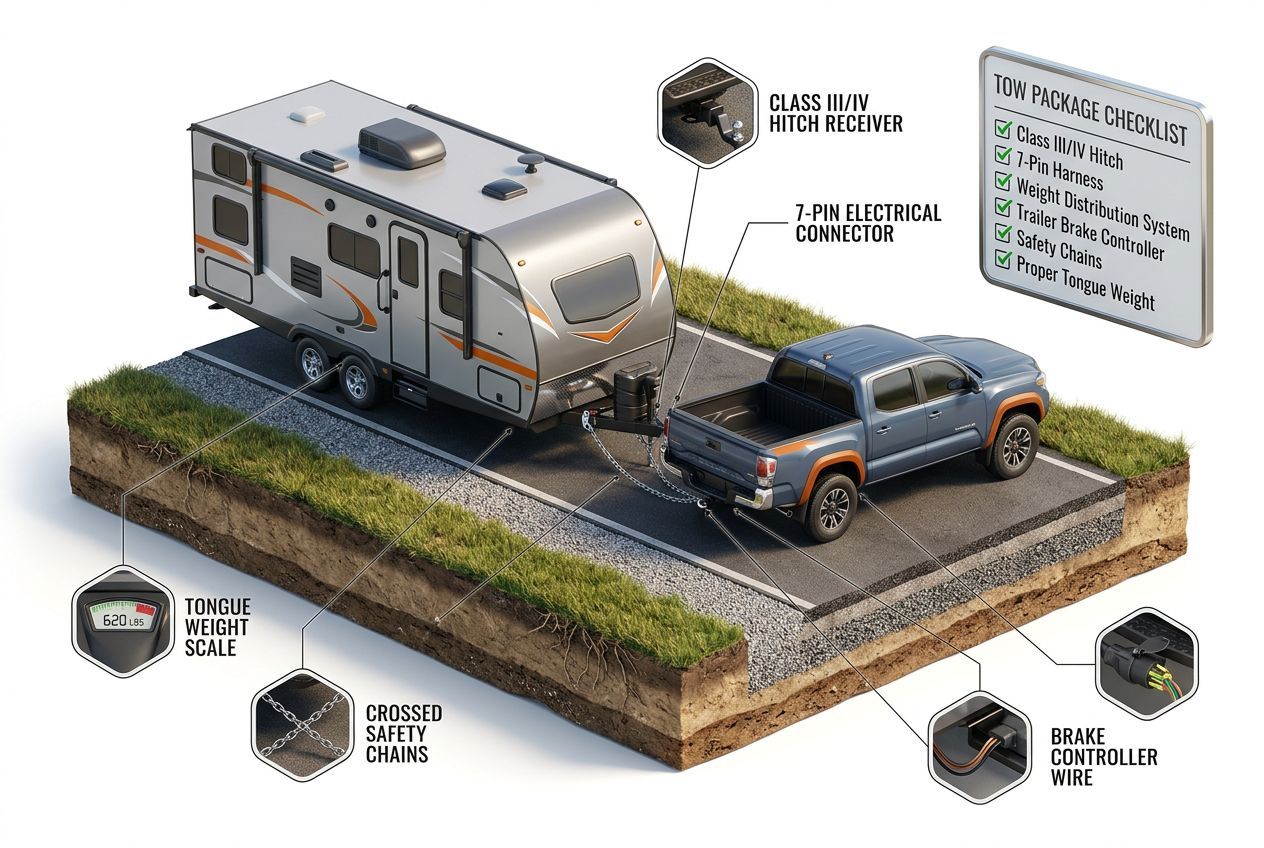

Components of the Tow Package: The factory package includes four key components designed to enhance towing performance and safety:

• A heavy-duty Class II/III hitch receiver
• A 4-pin and 7-pin trailer wiring harness
• A transmission oil cooler
• An upgraded engine cooling system with a larger radiator

The Role of the Transmission Cooler: The transmission oil cooler is arguably the most vital component. Sustained towing generates significant heat within the automatic transmission. Without active cooling, the transmission fluid can degrade rapidly, and clutch packs can experience premature wear, leading to costly damage.

💡 Key Takeaway: Toyota doesn't market the tow package with a specific option code like some manufacturers. However, it's listed as the "Tow Package" or "Trailer Hitch Receiver Package" in the Toyota accessories catalog. You can often confirm its factory installation by looking for the pre-wired 7-pin connector behind the driver-side taillight access panel.

✅ Pro Tip: While aftermarket hitches can provide the physical hardware, they typically don't include the crucial transmission oil cooler or integrate with the truck's Vehicle Stability Control system for trailer sway control. For these reasons, prioritizing the factory tow package at the point of purchase is highly recommended for optimal towing performance and safety.

Competitive Landscape: The Tacoma's 6,500-lb maximum towing capacity positions it behind several direct midsize competitors, a factor worth considering before making a purchase decision. For instance, the Ford Ranger towing capacity can reach 7,500 lbs with its 2.3L EcoBoost four-cylinder engine. The Chevrolet Colorado tops out even higher at 7,700 lbs with its diesel option. The Nissan Frontier maxes out at 6,720 lbs, placing it just above the Tacoma's ceiling.

Midsize Truck Towing Comparison:

Beyond Raw Numbers: While the Tacoma sits near the bottom of the midsize class for raw towing numbers, it compensates with other strengths.

• Reliability and Resale Value: The Tacoma consistently leads in reliability data and retains its resale value better than any other midsize truck. According to Kelley Blue Book (kbb.com), it often retains over 60% of its original MSRP after five years.

📊 Quick Fact: The Toyota Tacoma consistently holds resale value better than any other midsize truck, often retaining 60%+ of its original MSRP at five years, according to Kelley Blue Book.

The 2024–2025 i-FORCE MAX Hybrid: The introduction of the fourth-generation i-FORCE MAX hybrid powertrain significantly alters the real-world towing experience. Producing 326 horsepower and an impressive 465 lb-ft of torque (nearly double the third-gen V6's 265 lb-ft), the new engine delivers substantially stronger low-end pull. Although the rated towing ceiling remains at 6,500 lbs, the feeling of acceleration from a standstill, especially on a steep grade, is dramatically different.

💡 Key Takeaway: The i-FORCE MAX's turbocharged engine maintains boost pressure and power more effectively at high altitudes compared to naturally aspirated engines, which typically lose about 3% power per 1,000 feet of elevation. This makes the i-FORCE MAX a strong contender for those who frequently tow in mountainous regions.

For a broader comparison against full-size options, refer to our guide on half-ton truck towing capacity.

Understanding Tongue Weight: The tongue weight limit for a Toyota Tacoma is 650 lbs on V6 configurations equipped with the tow package, as per Toyota's published specifications. For base four-cylinder models, which are rated at 3,500 lbs maximum towing capacity, the tongue weight limit is 350 lbs – precisely 10% of the rated capacity, which is the standard industry benchmark.

Importance of Proper Tongue Weight: Tongue weight refers to the downward force exerted by the trailer coupler on your hitch ball.

• Too little tongue weight (under 10% of loaded trailer weight) can lead to dangerous trailer sway, making your setup unstable and difficult to control.
• Too much tongue weight (over 15%) can overload your truck's rear axle, potentially lifting the front wheels, reducing steering response, and compromising braking performance.
• The ideal "sweet spot" for tongue weight is typically between 10% and 15% of the trailer's loaded weight.

⚠️ Warning: Improper tongue weight is a leading cause of trailer accidents. Always measure and adjust your trailer's tongue weight to fall within the 10-15% range for safe towing.

Weight-Distribution Hitches: If your trailer's tongue weight approaches or exceeds 650 lbs, a weight-distribution hitch is essential. This specialized hitch system redistributes the load more evenly across all four axles of your truck and trailer, improving stability and handling. The Tacoma's factory Class II receiver (with a 2-inch tube) is compatible with most weight-distribution hitch heads; always verify that the hitch head unit's shank size matches your receiver before purchase.

For a comprehensive pre-tow checklist, including recommendations for brake controllers (which the NHTSA (nhtsa.gov) recommends for trailers over 3,000 lbs), consult our how to find towing capacity guide. You can also utilize the can my truck tow this tool to verify your specific trailer's compatibility and margin before heading out.
